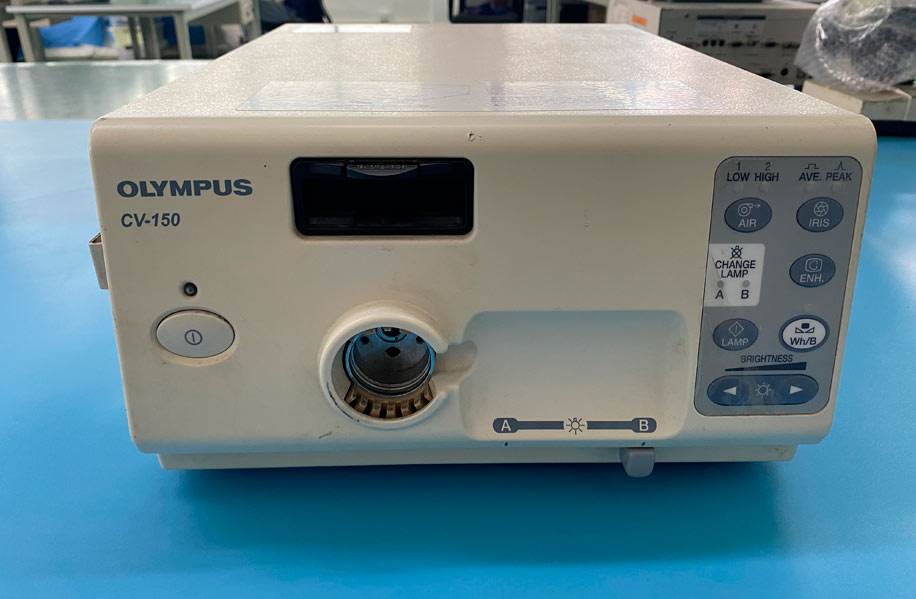

Video signal output: Y/C, RGB, VBS composite, and XGA signal: simultaneous output is possible. White balance adjustment: By pressing the white balance switch on the front panel, automatic white balance can be performed. Color tone adjustment: R Control (±7steps), B Control (±7steps) Iris Mode Selection: Average normal observation, peak (when focusing on and/or observing a small bright area) Image Enhancement Setting: Fine patterns or edges in the endoscopic images can be enhanced electrically to increase the image sharpness, Either the structural enhancement or edge enhancement can be selected.

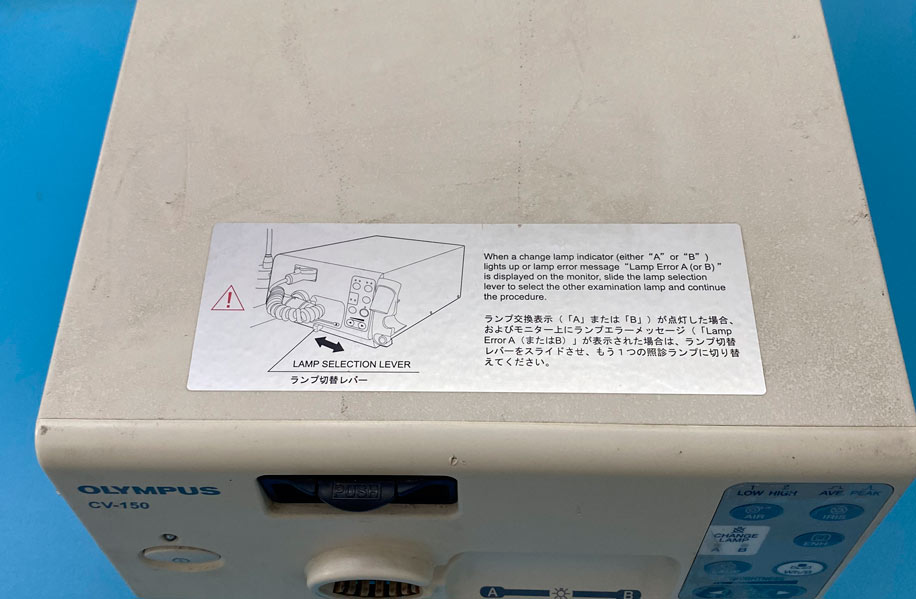

Switching of lamps: Manual
Lamp A: 150 W halogen lamp
Lamp B: (MD-151: JCM 15-150FP, USHIO)
Lamp life: Approx. 50 hours of continuous use. When used intermittently, the lamp life may vary slightly
Ignition: Switching regulator
Light output adjustment: Light-path diaphragm control
Cooling: Forced-air cooling
