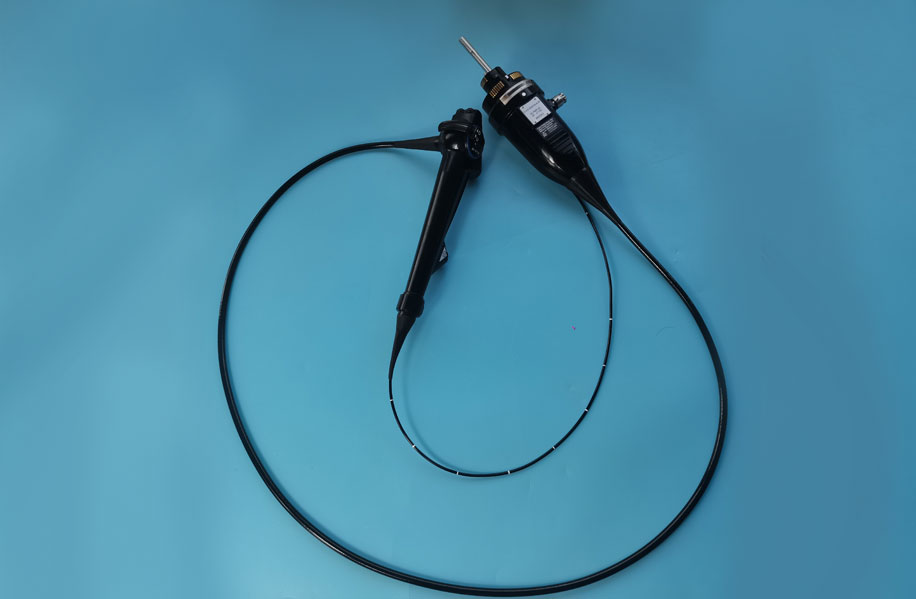

The BF-XP190 has a slim design and is driven by EVIS EXERA III and has extremely high image quality
1. High resolution image

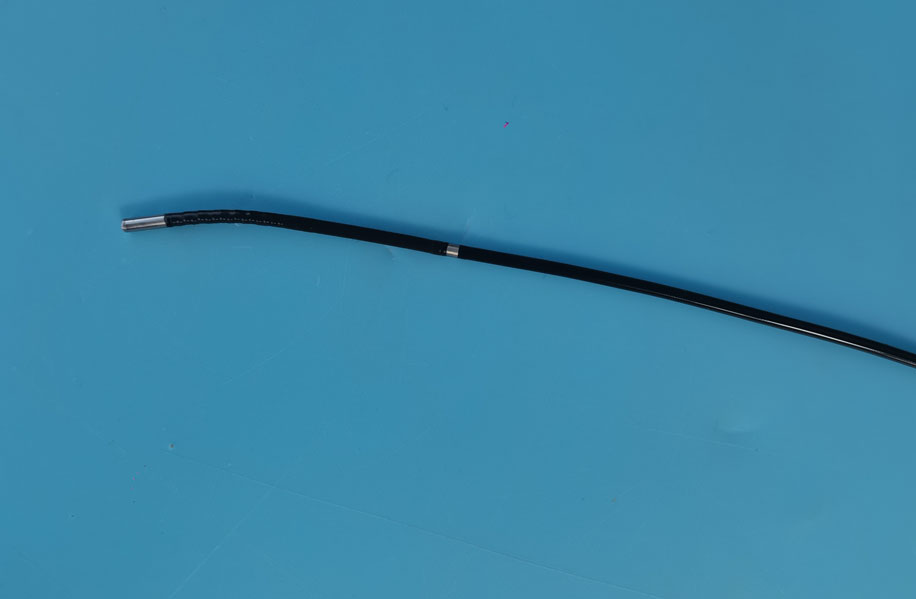

2. 210° tip angle. Wide range of angles for easier access to hard-to-reach areas of the human body.

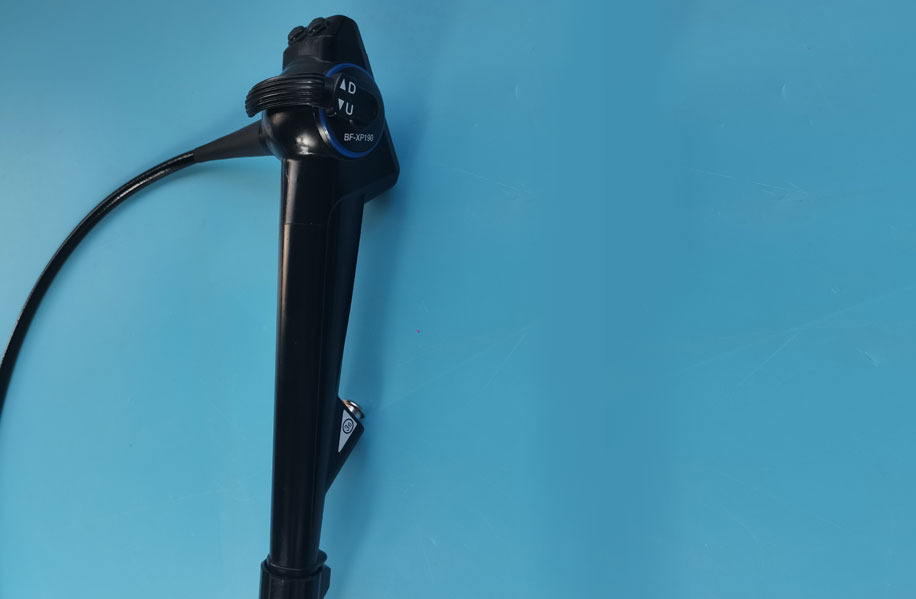

3. Rotation function. The insertion tube rotates left and right up to 120°, which enables easier insertion and positioning of the insertion tube.
Channel Width: 1.2 mm
Working Length: 600 mm
Field of View: 110°
Direction of View: 0° Forward Viewing
Depth of Field: 2-50 mm

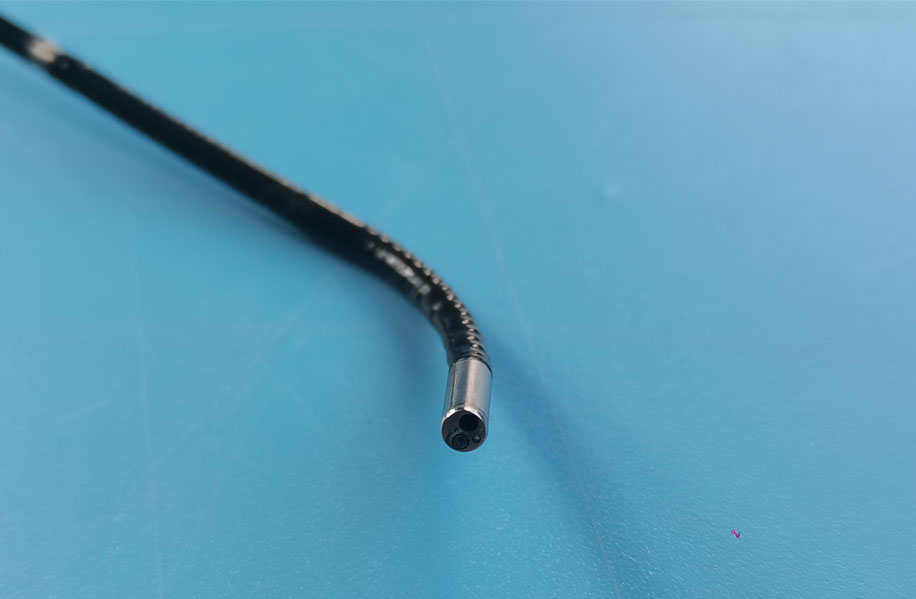

Outer Diameter: 3.1 mm Distal End
Outer Diameter Insertion Tube: 2.8 mm
Max Angulation Up: 210°
Max Angulation Down: 130°
Max Angulation Right: 120° with Rotary Function
Max Angulation Left: 120° with Rotary Function
