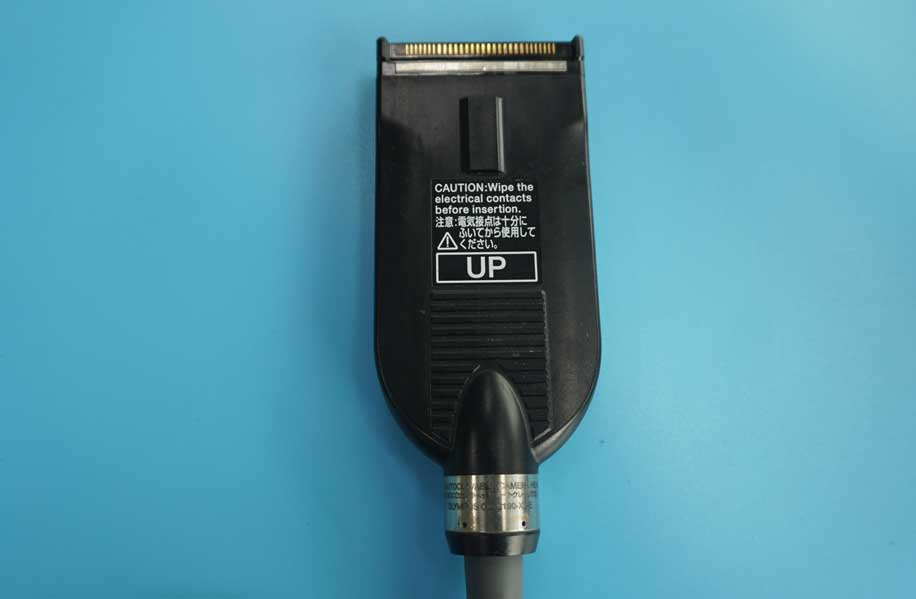

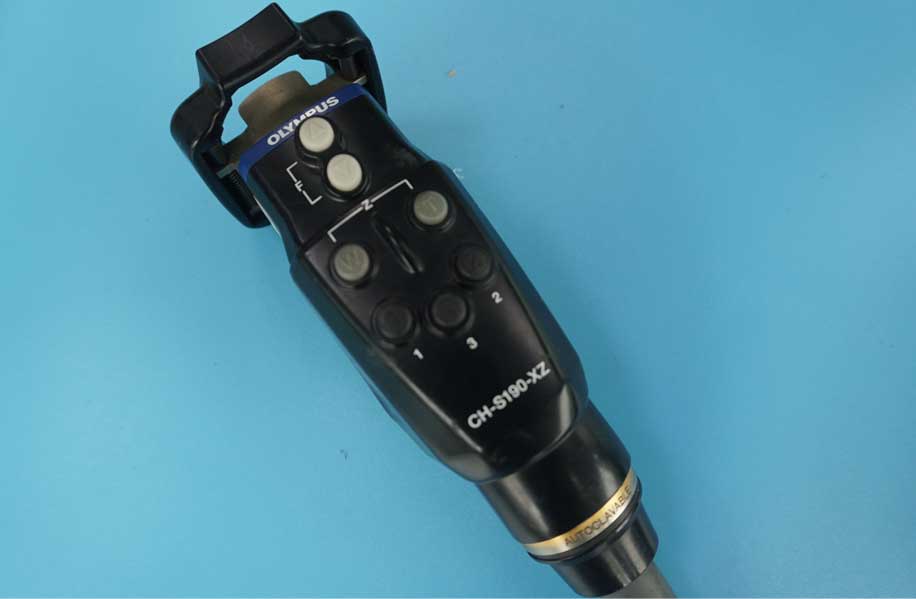

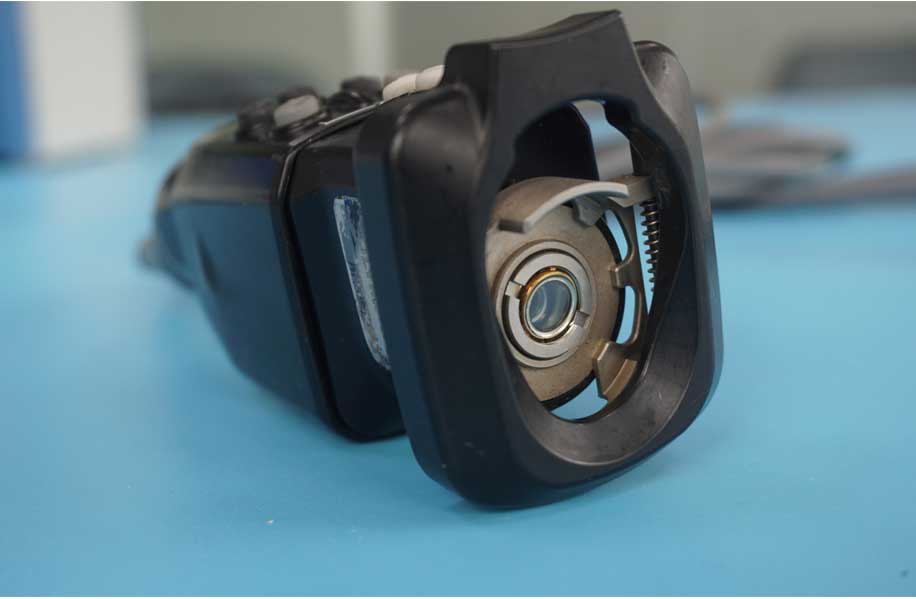

The camera head Ch-s190-xz-e /Q is a 3CCD high definition autoclave camera head. Its famous features include high resolution, next-generation, 3CCD Olympus HD autoclave.
Endoscope Type: Endoscope
Size (Camera Head Dimension W x H x D):
XZ-E Type: 50 x 63 x 142 mm
XZ-Q Type: 45 x 58 x 161 mm
Weight: 350 g
Pickup System: 0.85 cm/0.33 inches solid-state image pickup
Magnification Ratio: Focal distance f = 15.8 – 31.3 mm
C/D/S: Cleaning/disinfection disinfectant solution
Classification (Electromagnetic Equipment):
Degree of Protection Against Electric Shock: Type BF
Degree of Protection Against Explosion: Product should be kept away from flammable gases
Full HD 3CCD: HD 3CCD delivers high-definition image quality with exceptionally fine detail.
Power zoom and focus: Intuitive, motor-driven, remote-controlled 0.9 -1.8 zoom and remote-controlled focusing are accessible on the camera head for one-hand usage.
Narrow Band Imaging (NBI): NBI is now 20% brighter compared to previous models. This Olympus proprietary optical imaging technology enhances visualization of vessels and other tissues on the mucosal surface.
