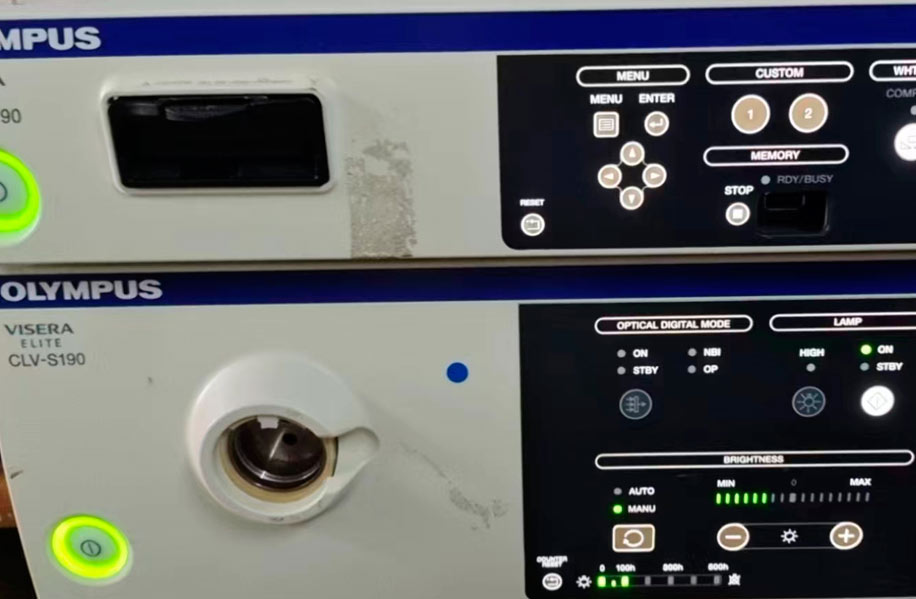

Olympus OTV-S190 Video Processor & CLV-S190 Light Source & CH-S190-XZ-E/Q HD Camera Head
The OTV-S190 and CLV-S190 systems feature advanced HDTV video processors and high-intensity 300-watt light sources to provide the clearest images for endoscopic surgery. It uses structure-enhanced image processing techniques to electronically emphasize detailed patterns and edges of the image to increase sharpness.
The CH-S190-XZ-E/Q is an HD Autoclavable Camera Head with an HD 3CCD that delivers high-definition image quality with high precision detail. Its most outstanding advantage is a 20% increase in NBI brightness, which greatly enhances the visualization of blood vessels and other tissues on the mucosal surface.
OTV-S190
Power Supply: Voltage 120 - 240V AC; +10%
Frequency: 50/60 Hz; +1 HZ
Consumption Electric Power: 150 VA
Size: Dimensions: (W x H x D) 370 x 85 x 455 mm
Weight: 8.8 kg
CLV-S190
Power Supply: Voltage 120-240V AC; +10%
Frequency: 50/60Hz; + 3HZ
Consumption Electric Power: 500 VA
Size Dimensions: (W x H x D) 370 x 150 x 474 mm (standard)
Weight: 14.9 kg
CH-S190-XZ-E/Q
Size (Camera Head Dimension W x H x D):
XZ-E Type: 50 x 63 x 142 mm
XZ-Q Type: 45 x 58 x 161 mm
Weight: 350 g
Observation:
Pickup System: 0.85 cm/0.33 inches solid-state image pickup
Magnification Ratio: Focal distance f = 15.8 – 31.3 mm
